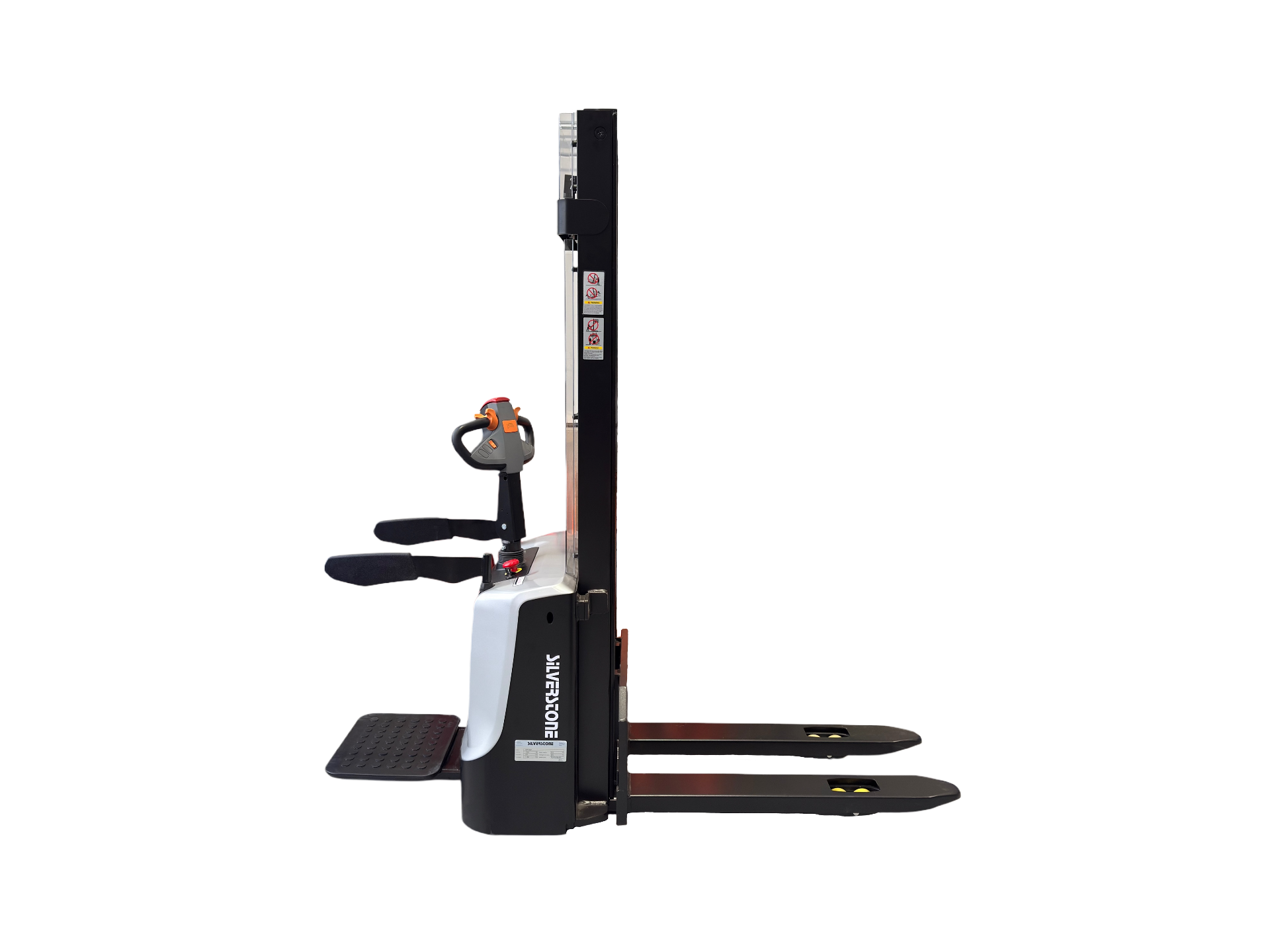

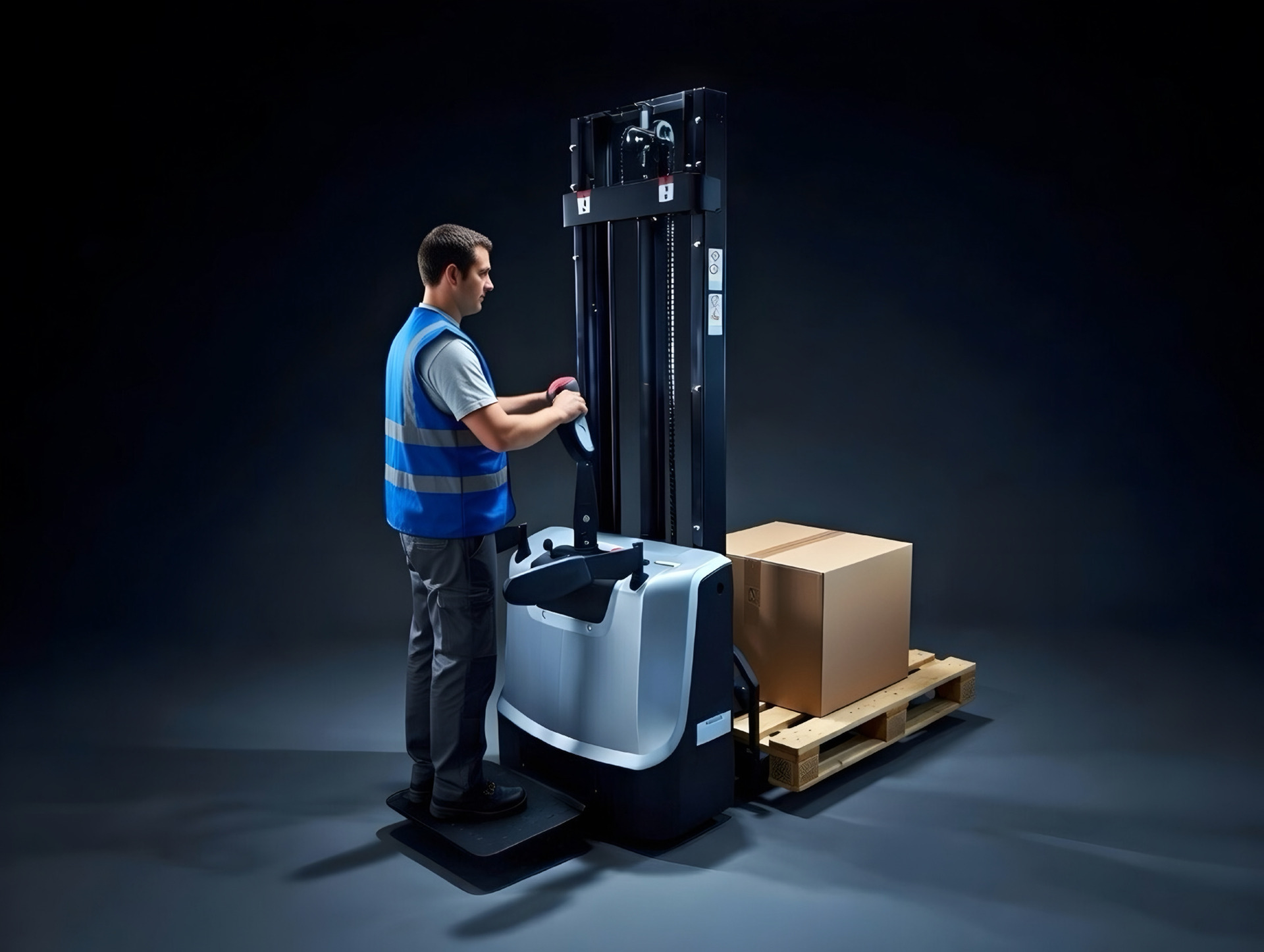

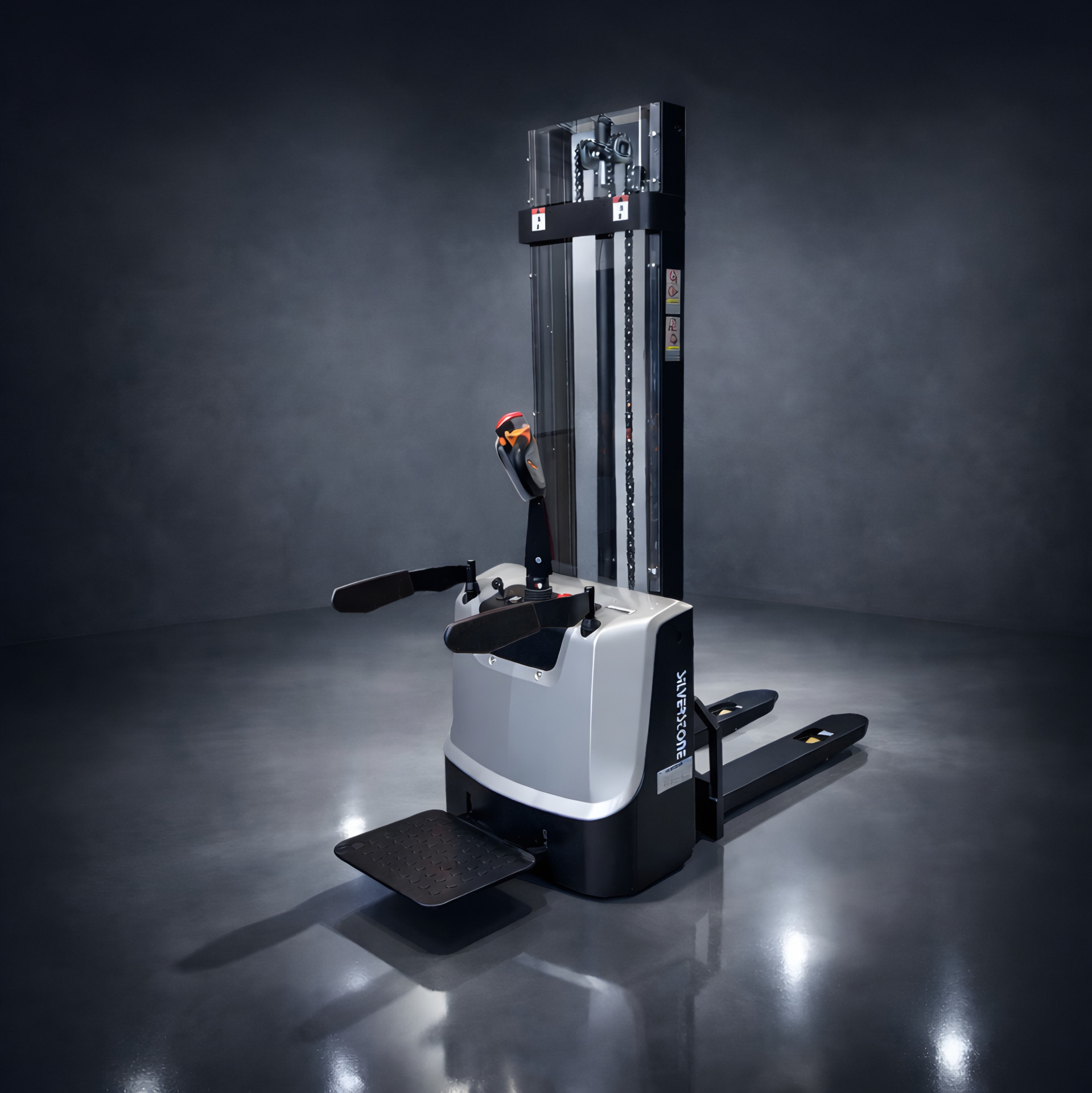

Silverstone ES1536P – Compact, cost-effective ride-on stacker with platform
Smart, smooth and cost-efficient internal material handling.
The ES1536P is a compact fully electric stacker with ride-on platform, designed for safe and ergonomic pallet handling in warehouses, retail environments and production facilities.
With a 1,500 kg capacity and 3,600 mm lift height, it covers most internal logistics needs while remaining compact enough to work efficiently in narrow aisles and confined spaces.
The practical fold-down ride-on platform reduces operator fatigue and increases comfort during longer transport distances and repeated movements. Thanks to the built-in charger and standard 230V socket, the truck can be charged anywhere – simple, flexible and without the need for external charging equipment. The maintenance-free battery ensures low operating costs and high reliability.
Key benefits
- Ride-on platform for improved ergonomics – more comfortable operation during longer movements
- Polyurethane wheels – quiet operation, gentle on floors
- Compact design – ideal for narrow aisles and restricted spaces
- Built-in charger (230V) – easy charging directly from a wall socket
- 1500 kg capacity & 3.6 m lift height – handles most pallet applications
- Maintenance-free battery – minimal service, low total cost of ownership
- Electromagnetic brakes – safe and controlled braking
Ideal for
- Warehousing & internal logistics
- Retail backrooms and storage areas
- Production & workshops
- E-commerce & picking operations
- Wholesale environments
- Technical specifications
Technical specification
- Capacity: 1,500 kg
- Lift height: 3,600 mm
- Load centre: 600 mm
- Wheelbase: 1,200 mm
- Service weight incl. battery: 670 kg
- Wheel type: Polyurethane
- Drive wheel: 210 × 70 mm
- Fork wheels: 80 × 70 mm
- Stabiliser wheels: 100 × 40 mm
- Overall dimensions (L×W×H): 1,775 × 820 × 2,336 mm
- Mast height extended: 4,043 mm
- Fork dimensions (L×W×T): 1,150 × 160 × 60 mm
- Outside fork width: 570 mm
- Ground clearance: 26 mm
- Min. aisle width with 800×1200 mm pallet: 2,190 mm
- Turning radius: 1,410 mm
- Travel speed, laden/unladen: 5.5 / 6 km/h
- Lifting speed, laden/unladen: 87 / 143 mm/s
- Lowering speed, laden/unladen: 100 / 90 mm/s
- Brakes: Electromagnetic
- Battery: 2×12V / 120Ah
- Battery type: Maintenance-free
- Drive motor: DC 0.75 kW
- Lift motor: 2.2 kW
