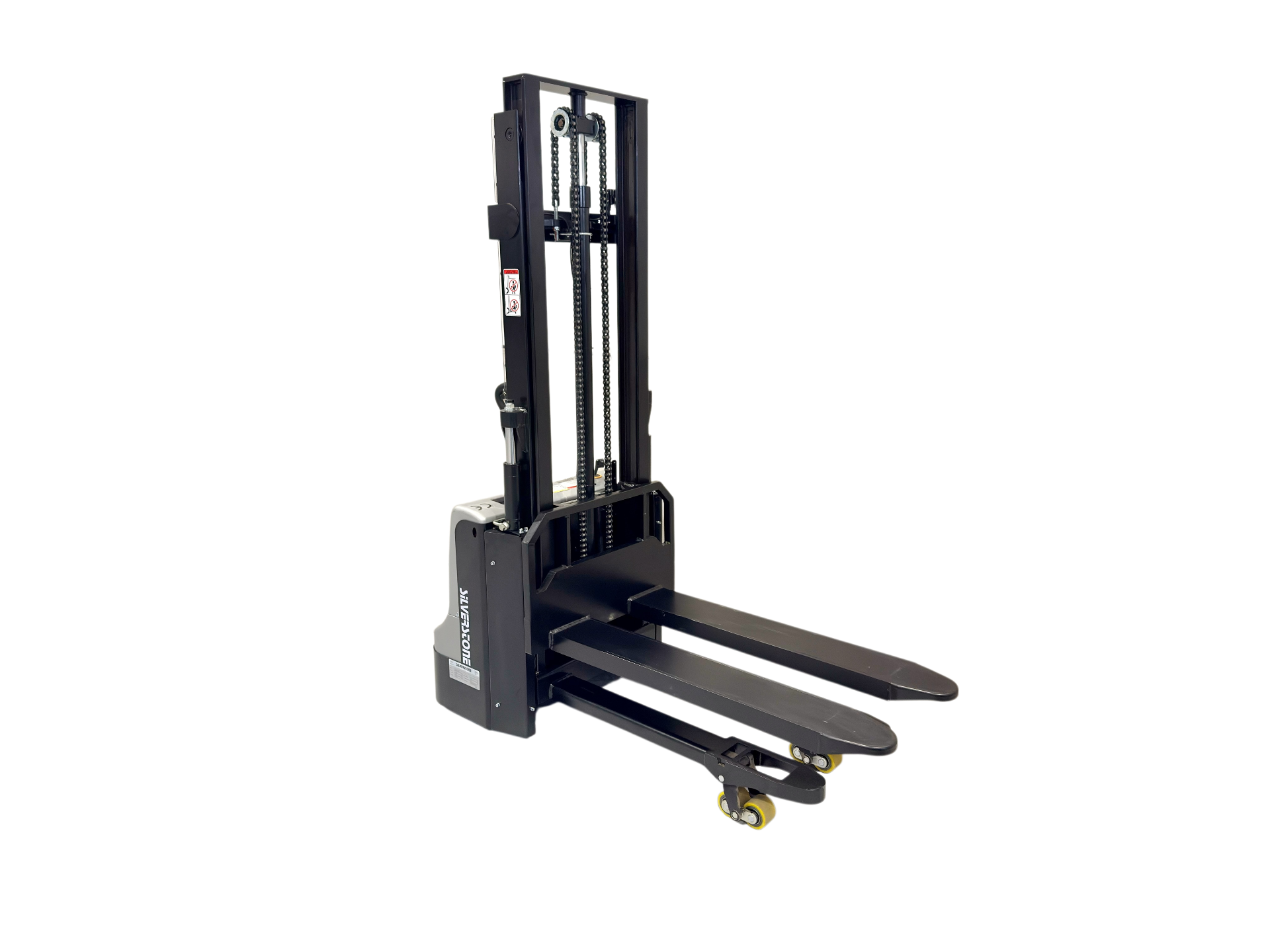

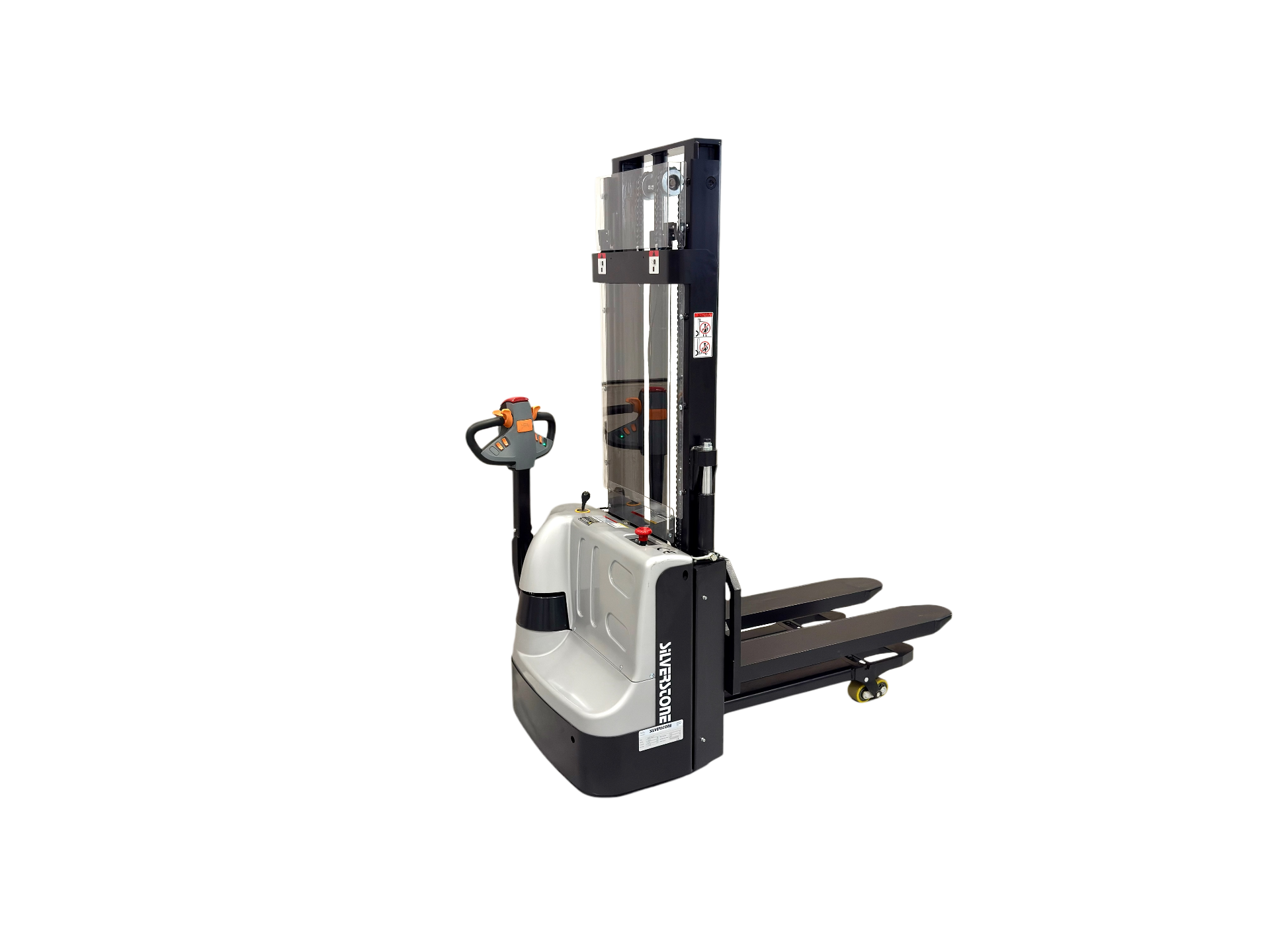

The Silverstone ESP pedestrian stacker is a cost-effective full
electric stacker for everyday use. It is a compact, flexible and
lightweight full electric walkie stacker.Initial lift for dual pallet handling.
- Initial lift for dual pallet handling
- Capacity 1200 kg
- Lifting height 2700 mm
- Full electric walkie stacker
- Compact design
- Key lock
- Built-in charger
- Maintenance free batteries
- Overall height (mast lowered): 1900 mm
Both the upper forks and the support legs (initial lift) have a capacity of up to 1,200 kg each. However, it is important to note that this does not mean you can lift 1,200 kg on each level at the same time.
The total combined load (upper + lower forks) must never exceed 1,200 kg.
This means, for example:
- You can lift 1,200 kg on one level (either the upper forks or the support legs)
-
Or distribute the load between the two levels, as long as the total weight does not exceed 1,200 kg
Important to consider:
- Overloading may cause damage to the machine and reduce stability
-
Always follow the load chart to ensure safe operation
-
Capacity is affected by lift height and the load center

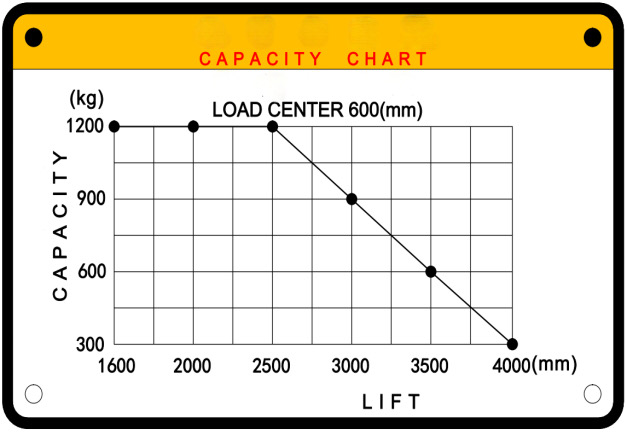

Please refer to the load chart above to see how capacity varies at different lift heights.
